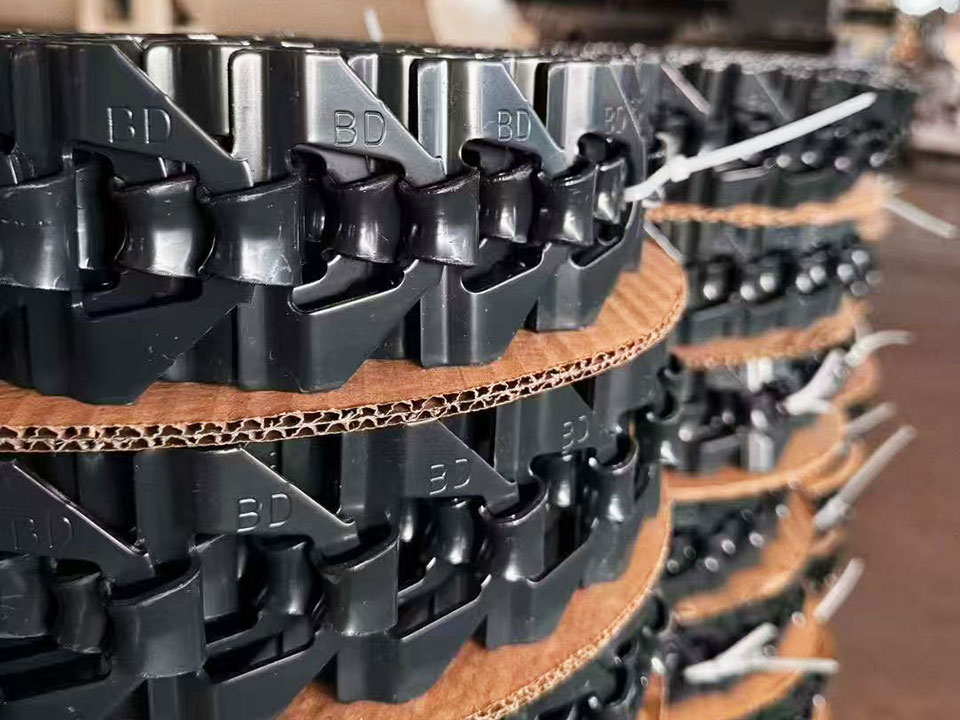

Type S Chain
The S-type feeder chain is Technical System company signature product, it is provided the best flat feeder chain. In any feeder configuration you can rely on Technical Systems S type feeder chains to transfer feed evenly, quickly and efficiency.
Product introduction
In automated chicken feeding system,because of its stability and reliability, the chain conveyor method is widely used. The S type chain link adopts special curved structure design to make it smoother during turns, corners and long distance transportation, reduced jamming and resistance.
This product is suitable for various breeding modes such as layers and broilers, and can improve feeding efficiency and reduce equipment operating load.
Performance, Dimensions and Specifications
◎ The lower limit of tensile strength is 12 KN
◎ No distortion, oscillation or empty spots
◎ No elongation or deformation after installation
◎ Rockwell hardness (HRc): 48 – 50
◎ Number of chain links within 10 meters length: 236 (+1.2 mm: -1.2 mm)
◎ Chain pitch: 42.4 mm (+0.2 mm: -0.2 mm)
◎ Steel thickness: 2.5 mm (+0.18 mm: -0.18 mm)
◎ Chain piece width:
70 mm (+0.4 mm: -0.0 mm) models S & C
42.86 mm (+0.4 mm: -0.0 mm) Model P

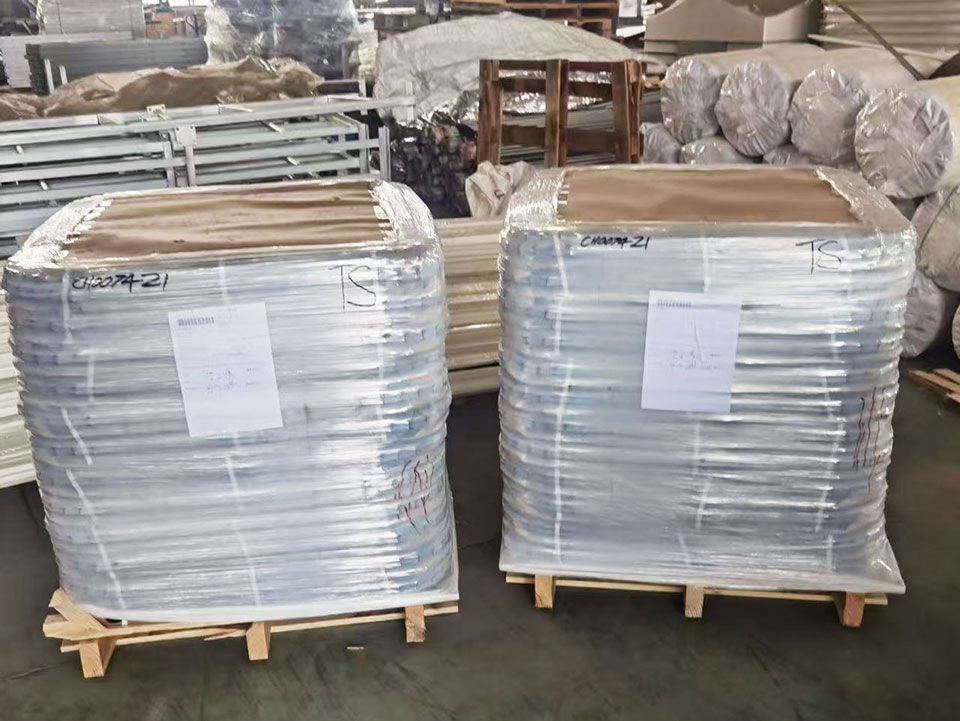

Product packaging
Standard pallet
Meters: 1 x 6 m container = 20 pallets, 1 pallet = 1080 meters
108 rolls x10 meters per pallet, 1 x 6 m container, total 21600 meters
Feet: 1 x 20 ft container = 20 pallets, 1 pallet = 2925 ft,
117 rolls x 25 ft per pallet, 1 x 20 ft container total 58,500 ft.
small tray
Mixed shipments with augers to maximize container loading capacity
Meters: 1 x 6 m container = 20 pallets, 1 pallet = 520 meters,
Each pallet contains 52 rolls x10 meters, 1 x 6 m container, total 10400m
Feet: 1 x 20 ft container = 20 pallets, 1 pallet = 1200 feet,
24 rolls x 50 feet per pallet, 1 x 20 ft container for a total of 24,000 feet
Mixed shipments of chain links and augers – competitive advantage
To maximize shipments and customer purchasing flexibility, small pallets of chain link packaging can be placed inside the roll auger. This allows us to fit half a container of chain links into full container auger without increasing transportation cost, thereby maximizing space utilization and reducing unit cost.
Please inquire about mixed shipments.
Application scenarios
·Chain feeding system for layers
·Automatic broiler feeding equipment
·Complex lines or multi turn conveying system
·Large scale breeding projects
Why choose our S-shaped chain link?
1. It is designed for complex feeding systems
2.The S-type chain link improved conveying stability and reduce failure rate
3.Extend equipment life
4.Support multiple specification and customization
5.Factory direct supply, high cost performance
FAQ
1. What is the difference between S-type chain link and P-type chain link?
The S-type chain link is more suitable for complex lines and curved transportation, while the P-type chain link is suitable for straight-line transportation.
2. Is it suitable for broilers and laying hens?
Yes, suitable for all poultry chain feeding systems.
3. Is it easy to get stuck?
No, the S-shaped structural design can reduce jamming and material clogging.
4. How long is the service life?
Made of wear-resistant materials, it can run for a long time under normal use.
5. Does it support customization?
Support, matching design can be carried out according to different systems.
6.Does the installation is complicated?
The installation is simple and can be directly connected to the chain.
