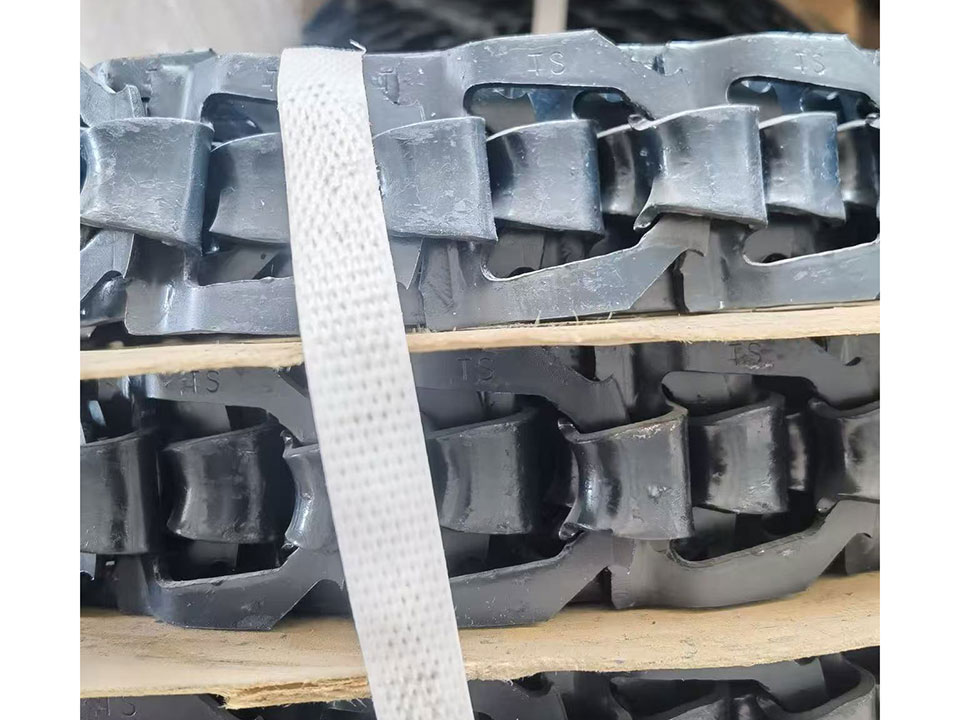

Type P Chain
The P-type feeder chain is a signature product of Technical Systems Company, this type feeder chain providing advanced feeder chain for floor-feeding operations. With any configuration in feeder, you can rely on Technical Systems P- feeder chains to deliver feed evenly, quickly, and efficiency.
Performance, Dimensions, and Specifications
◎ Minimum tensile strength: 12 kN
◎ No twisting, vibration, or voids
◎ No elongation deformation after installation
◎ Rockwell hardness (HRc): 48 – 50
◎ Number of chain links per 10 meters: 236 (+1.2 mm: -1.2 mm)
◎ Chain link pitch: 42.4 mm (+0.2 mm: -0.2 mm)
◎ Steel thickness: 2.5 mm (+0.18 mm: -0.18 mm)
◎ Chain link width:
70 mm (+0.4 mm: -0.0 mm) Model S & C
42.86 mm (+0.4 mm: -0.0 mm) Model P

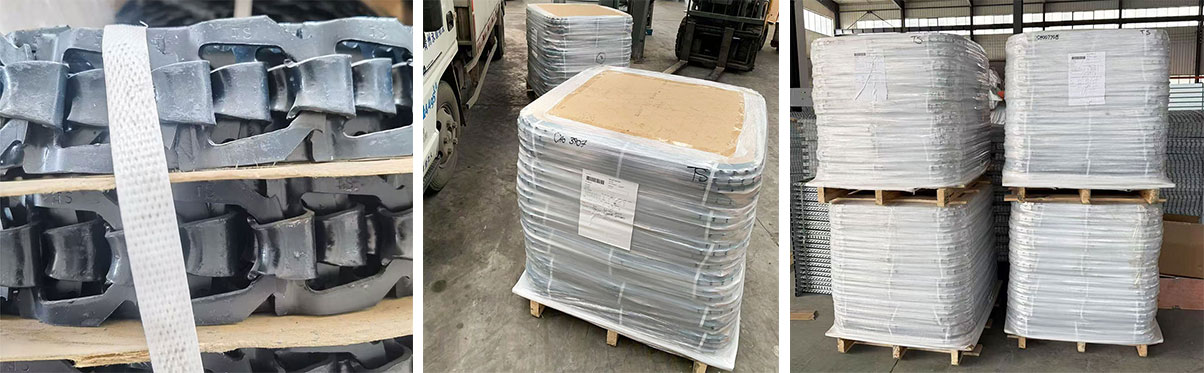

Product Packaging

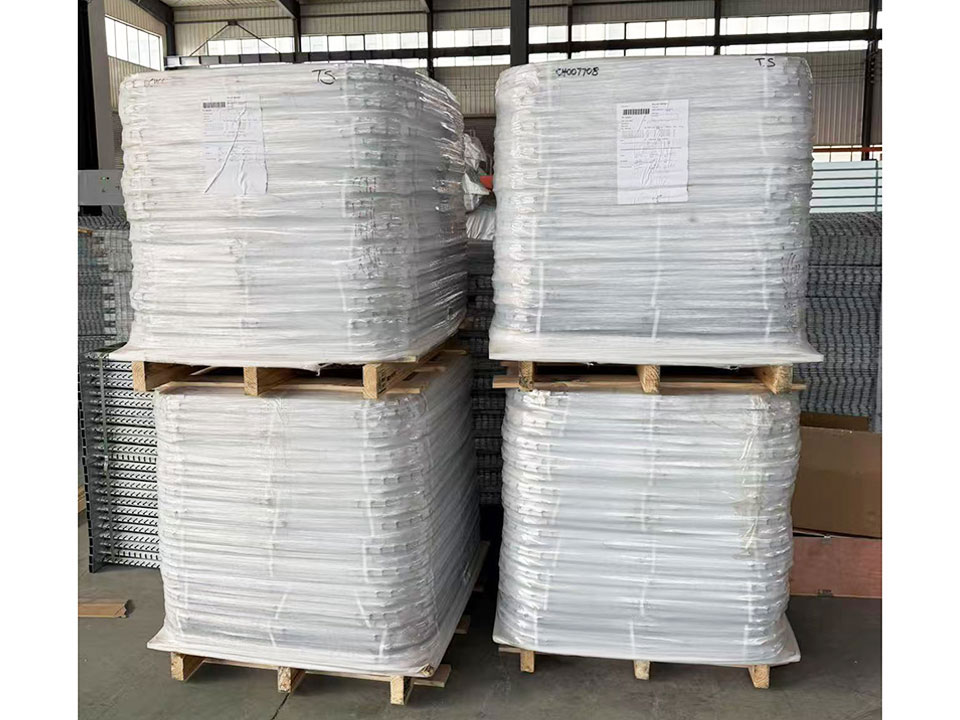

Standard Pallet
Meters: 1 x 6 Meter: Container = 20 pallets, 1 pallet = 1080 meters
Each pallet contains 108 rolls x 10 meters, 1 x 6 m container holds total of 21600 meters.
Feet: 1 x 20 ft container = 20 pallets, 1 pallet = 2925 feet
Each pallet contains 117 rolls x 25 feet, 1 x 20ft container holds a total of 58500 feet.

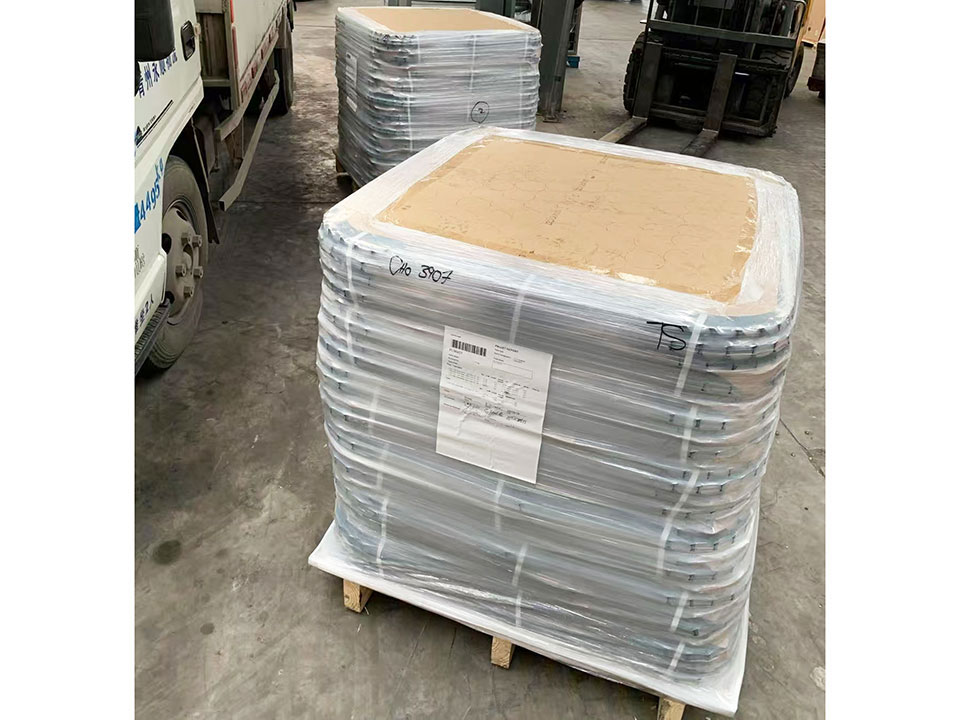

Small pallets
Mixed shipments with augers to maximize container capacity.
Meters: 1 x 6-meter container = 20 pallets, 1 pallet = 520 meters
Each pallet contains 52 rolls x 10 meters, a 1 x 6-meter container holds a total of 10400 meters.
Feet: 1 x 20-foot container = 20 pallets, 1 pallet = 1200 meters. Feet,
Each pallet contains 24 rolls x 50 feet, totaling 24,000 feet for a 1 x 20-foot container.
Competitive Advantage
Chain and Screw Mixed Shipping
To maximize shipping capacity and provide customers with greater purchasing flexibility, small palletized chain links can be placed inside rolled screws. This allows us to load half container of chain links into full container of screws without cause additional shipping cost, thereby maximizing space utilization and reducing unit costs.
