Imported TS Auger (South Africa)

Production introduction

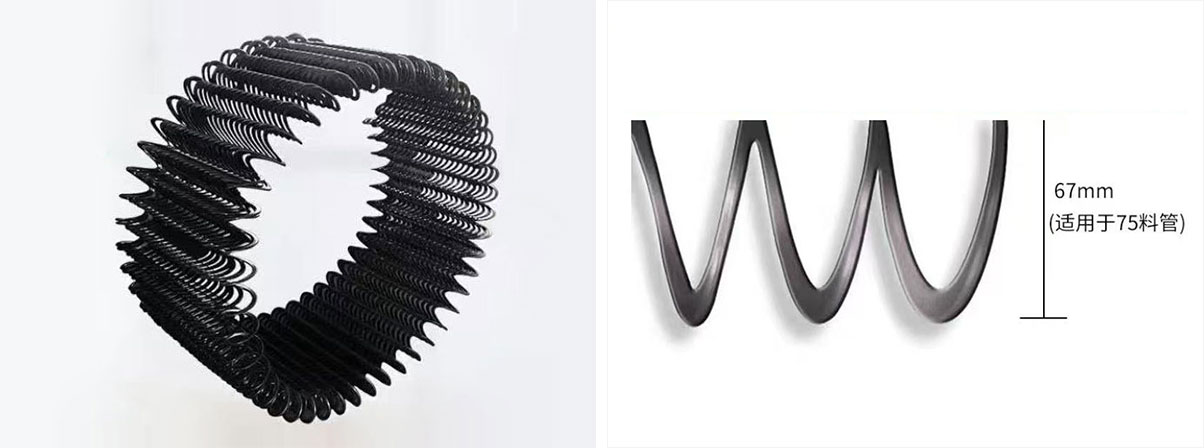

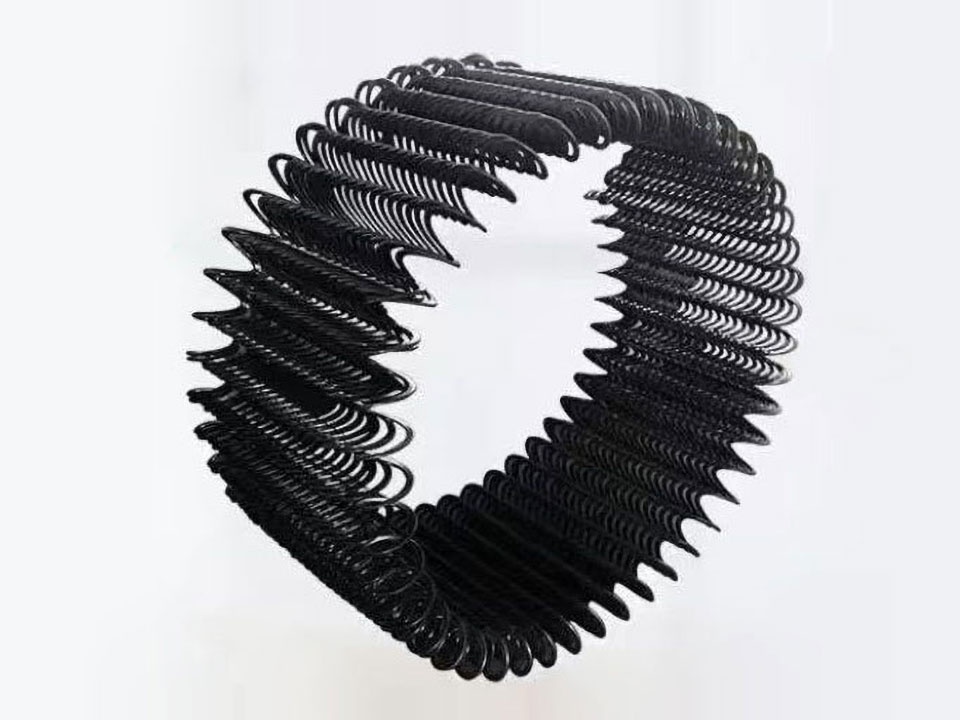

TS Auger( TEchnical Systems Ague) comes from South Africa, it is a very famous provider of feed conveying solutions in poultry farming field. The TS auger achieves continuous feed conveying from silo to chicken house , to feeding pan by high strength spiral steel wires rotating within pipes.

Compared to ordinary augers, TS auger has a better performance on fatigue resistance and service life, it is especially suitable for high frequency automatic feeding system.

This design of auger can achieve closed-loop conveying, avoids feed contamination and waste, guarantee the efficiency and stability for conveying at the same time.

Product features

Super performance on anti fatigue

By using a special metal processing technology, it is less prone to breakage under long term continuous running, compare to normal auger, it has a much longer service life.

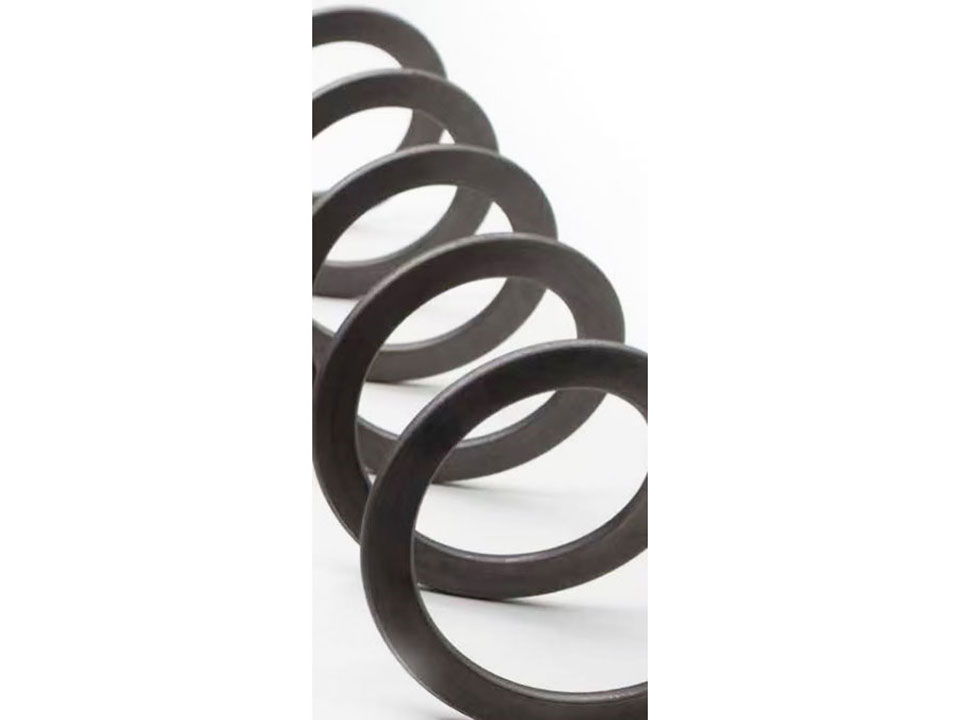

High strength spring steel material

With heat treated steel wire structure, it has high toughness and wear resistance, suitable for long term high load operation.

High efficiency and stability on feed conveying

It can provide 250-450kg/h conveying ability, and meet the needs of large scale farming.

Closed loop conveying , reducing waste

With closed-loop pipe conveying, it can avoid feed contamination and waste, improves utilization efficiency.

Support different installation ways

It supports horizontal, inclined , even vertical conveying( maximum up to 90° approximately), suitable for different chicken house structures.

Applications

Laying hen/broiler automatic feeding Systems

Silo to chicken house feed conveying

Main feed line and distribution line systems

Large-scale farm automation projects

Why choose TS auger from South Africa

1, Globally mature technology, this auger has been exported to more than 50 countries.

2, high reliability, suitable for long tern continuous operation

3, Low breakage risk, reduces maintenance costs.

4, Improve stability of feeding system

5, Compatible with mainstream automatic poultry farming equipment

FAQ

1, What’s the difference between TS auger and normal other augers?

TS auger uses special anti-fatigue spring steel, it has a longer service life and higher stability.

2, Is it suitable for broilers and laying hens ?

Yes, it is suitable for all kinds of automatic poultry feeding systems

3, What’s the distance of feed conveying?

According to different design, it can achieve long distance conveying, it’s normally used with silo system.

4, It is easy to break?

It is extremely difficult to break under normal use. And this is the core advantage of TS auger.

5, Does it support different specifications?

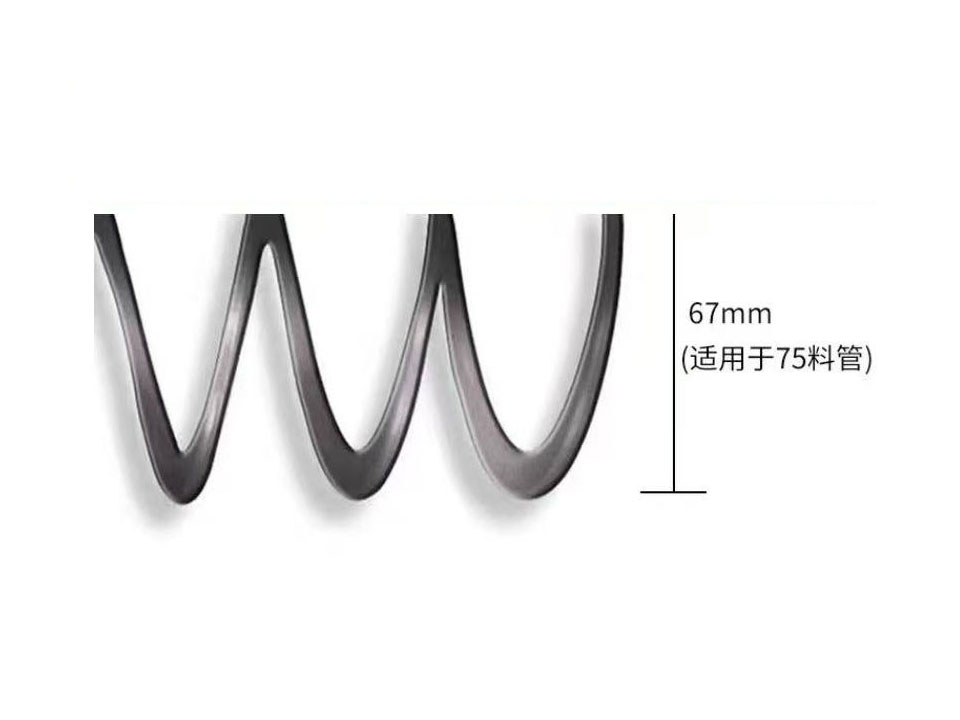

Yes, common sizes such as 45mm, 75mm, 90mm , etc.

6,Can it replace augers of other brands?

Yes, it’s compatible with most automatic auger feeding system.
