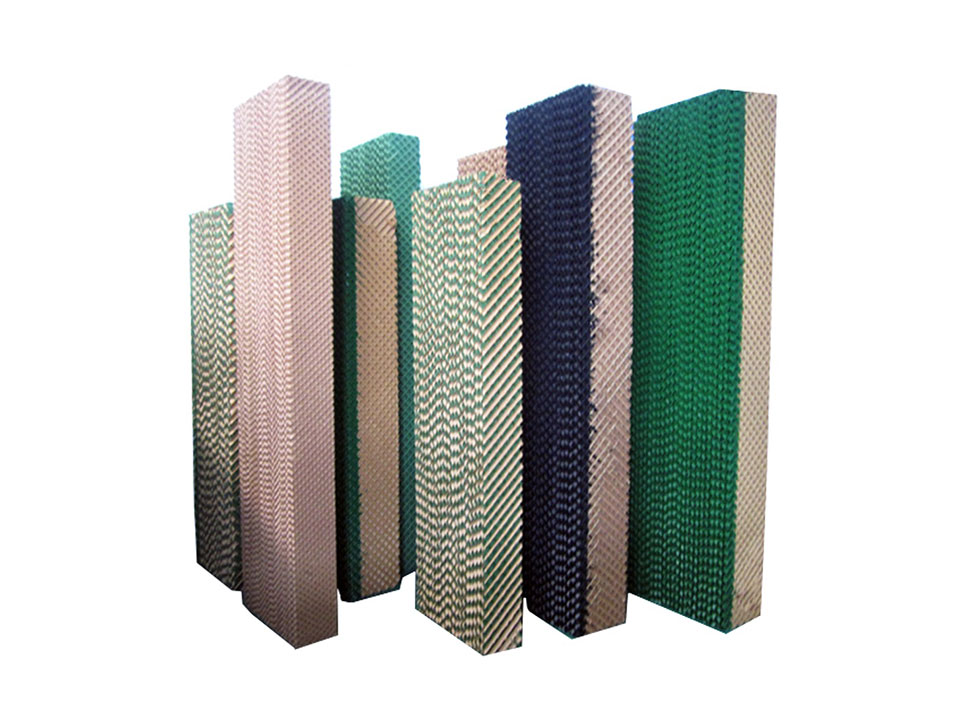

Cooling Pad

Evaporative cooling pad for broilers is a highly efficient cooling equipment,It’s principle is water evaporation. They are widely used in modern broiler houses and poultry farms. When working with negative pressure fan ,it will reduced temperature rapidly in the chicken house, increased air humidity, and improved air quality, also alleviating heat stress and improved the broiler’s growth uniformity and survival rate.

Product Introduction

In high temperature environment, broiler chickens is extremely sensitive to the temperature, the high temperature can cause problems such as decrease feed intake , slow growth , even death .

Hansong can provide the evaporative cooling pad, which can work with exhaust fan , to cool down the temperature.

It is an equipment which use water evaporative , absorb heat to lower the temperature inside the chicken house. In hot weather, it can lower the temperature in the chicken house by 5.5-10℃ or even more. If use it with the exhaust fan together, it can reduce the chickens’ perceived temperature by 8 ℃ around. The honeycomb shape cooling pad, which adopted high polymer materials, has the features of high water absorb ability , mold resistance, long service lift and so on. Proper use of the cooling pad, can not only reduce the chickens’ heat stress mortality, but also increase broiler chickens’ feed intake and daily weight gain. The cooling pad is necessary equipment for model large scale broiler farming.


Product Features


High Efficiency Cooling

Using with principle of evaporative cooling, it is able to reduce the temperature in broiler house around 5–10℃ (depending on the environment).

Airflow is Uniformly

Working with poultry fan, ensures that the cooled air is distributed into the chicken house evenly , avoid to localized overheating or undercooling.

Energy Saving and Environmentally Friendly

There is no need compressor refrigeration equipment , low energy consumption and lower operating costs than air conditioning system significantly .

Good absorption and durability

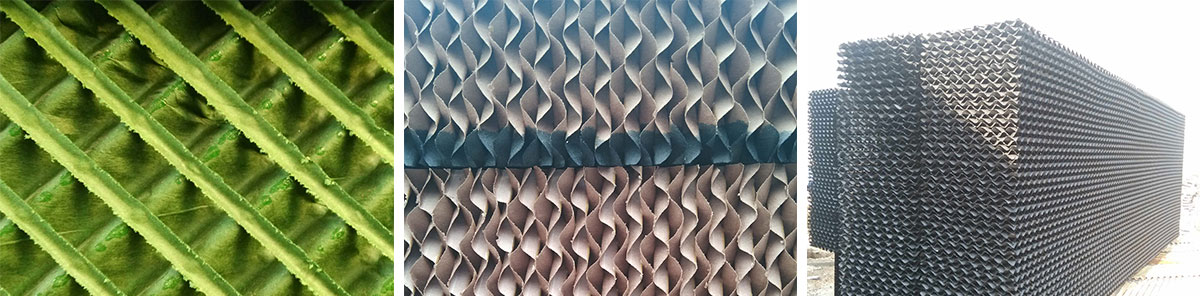

Hansong brand cooling pad material is made by high quality honeycomb structure paper, it is good absorption, corrosion resistance, mildew resistance, and long service life.

Easy to Installation and Maintenance

Modular design allows for simple installation and low maintenance costs.


Application

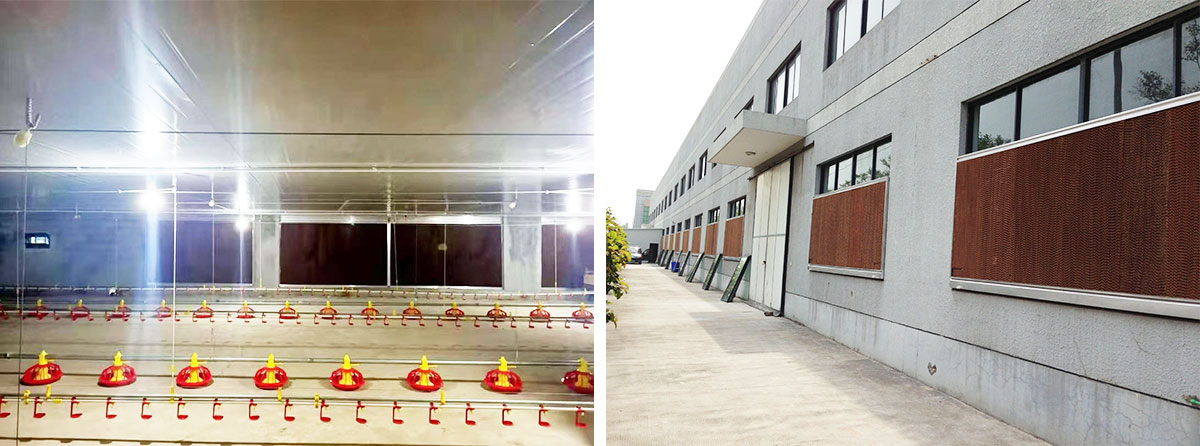

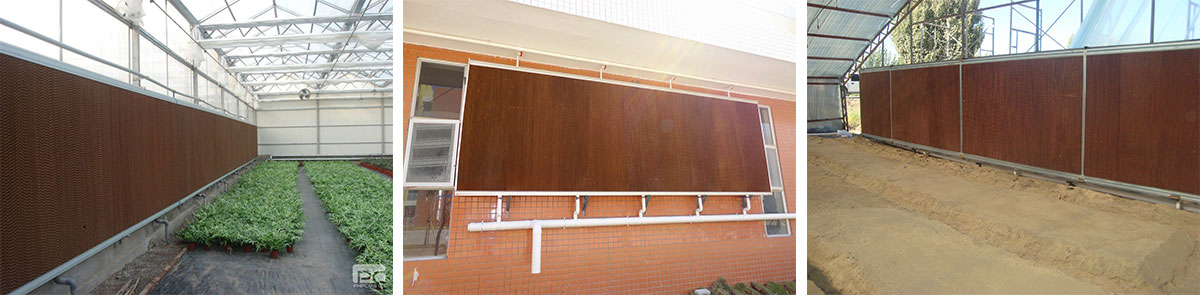

Hansong Cooling pad is widely used in broiler chicken farm(closed/semi-closed), cooling t temperature in high temperature environment , cooling pad+ negative pressure exhaust fan system , and large-scale poultry farm projects.


FAQ

1, What’s the cooling principle of evaporative cooling pad?

When water evaporate , it need to absorb heat. So when air become cooler when pass through the cooling pad, so the whole air temperature will lower in the chicken house.

2, How many degrees does the cooling pad can be lower?

Usually the cooling pad can lower the temperature by 5–10℃, also according to the temperature and humidity in broiler house.

3. Does the cooling pad must work with exhaust fan?

Yes,for best result,cooling pad need to work with exhaust fan.

4. Which type area is suitable for use this cooling pad?

It is suitable for high temperature dry or semi-dry area, like Middle east ,Africa and Southeast Asia

5. What’s the lifespan of cooling pad?

For Normal use,the cooling pad can use 3-5years.It is also depends on water quality and maintenance.

6. Do we need regular maintenance?

Yes, cooling pad need clean the water pipe and the face of cooling pad,to prevent blockages and scle buildup.
