Feed Silo
Broiler use feed silo is an essential component of automated feeding system in broiler farm. Designed by centralized feed storage, automatic feeding, and moisture proof , the feed silo improved feed utilization, reduce cost, and provide stable and efficient feed supply for broilers. If you are looking for feed silo supplier now, please contact Hansong company,our solution can meet the different needs of farms!
The feed silo provided by Hansong company made by 275g/m² high and hot dip zinc galvanized steel. The top 40°conical cover is unite with ventilation holes, and the bottom structure is designed by funnel-shaped conical ,in order to allow feed to flow into the automatic feeding system in the shed by gravity smoothly, reducing residue and blockage. The feed silo capacity can be customized according to the different needs of broiler farm sizes. Usually the feed silo used in conjunction with the main feeding line or auger system,to achieve fully automatic feeding. It’s advantages with sturdy and sealed, smooth discharge, and highly adaptable, and has become a core feed storage device in large scale broiler farming.
Main Specifications
| Model | Diameter(mm) | Capacity(t) | Capacity(m³） | Silo Height(m) | Layers | Legs |
| HS-1800-1 | 1800 | 2.5 | 3.9 | 3418 | 1 | 4 |
| HS-1800-2 | 1800 | 3.9 | 6.0 | 4231 | 2 | 4 |
| HS-1800-3 | 1800 | 5.3 | 8.1 | 5042 | 3 | 4 |
| HS-1800-4 | 1800 | 6.6 | 10.2 | 5853 | 4 | 4 |
| HS-1800-5 | 1800 | 7.9 | 12.3 | 6664 | 5 | 4 |
| HS-1800-1(Plus) | 1800 | 2.5 | 3.9 | 3820 | 1 | 4 |
| HS-1800-2(Plus) | 1800 | 3.9 | 6.0 | 4633 | 2 | 4 |
| HS-1800-3(Plus) | 1800 | 5.3 | 8.1 | 5446 | 3 | 4 |
| HS-1800-4(Plus) | 1800 | 6.6 | 10.2 | 6256 | 4 | 4 |
| HS-2100-2 | 2100 | 5.7 | 5.2 | 4589 | 2 | 4 |
| HS-2100-3 | 2100 | 7.5 | 6.9 | 5401 | 3 | 4 |
| HS-2100-4 | 2100 | 9.4 | 8.6 | 6214 | 4 | 4 |
| HS-2100-5 | 2100 | 11.1 | 10.2 | 7028 | 5 | 4 |
| HS-2750-2 | 2750 | 10.3 | 15.8 | 5294 | 2 | 6 |
| HS-2750-3 | 2750 | 13.4 | 20.6 | 6109 | 3 | 6 |
| HS-2750-4 | 2750 | 16.5 | 25.4 | 6918 | 3 | 6 |
| HS-2750-5 | 2750 | 19.6 | 30.2 | 7731 | 4 | 6 |
| HS-2750-6 | 2750 | 22.7 | 21.0 | 8864 | 6 | 6 |
| HS-3200-2 | 3200 | 15.0 | 23.1 | 5809 | 2 | 6 |
| HS-3200-3 | 3200 | 19.3 | 29.7 | 6622 | 3 | 6 |
| HS-3200-4 | 3200 | 23.6 | 36.3 | 7435 | 4 | 6 |
| HS-3200-5 | 3200 | 27.9 | 42.9 | 8248 | 5 | 6 |
| HS-3200-6 | 3200 | 31.95 | 29.5 | 9058 | 6 | 6 |
| HS-3670-2 | 3670 | 19.5 | 18.0 | 6335 | 2 | 8 |
| HS-3670-3 | 3670 | 25.1 | 23.2 | 7148 | 3 | 8 |
Product Advantages
Sealed and moisture proof:
The feed silo top is designed by 40° conical ,so prevents rain seepage; the ventilation holes ensure feeding smoothly.
Discharge Smoothly:
The bottom of feed silo with funnel-shaped conical design,ensures feed flow smoothly, reducing residue and blockage.
Centralized feed storage ,and reduced manual handling and feeding frequency.
Application Scenarios

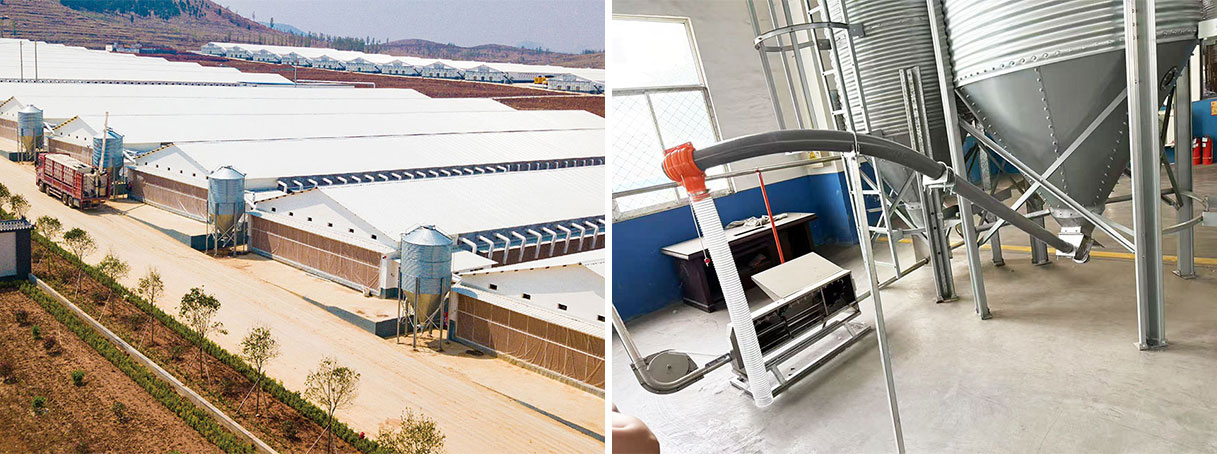

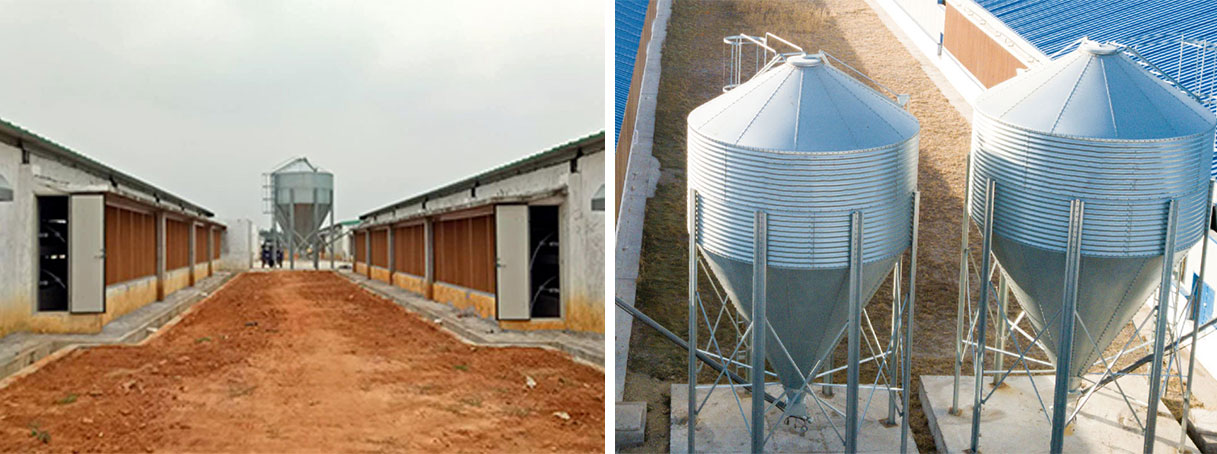

Hansong company supplied feed silo is widely used in broker farms,large scale poultry Farms and brooding and growing houses.
Frequently Asked Questions (FAQ)
1: How to choose the capacity of feed silo?
We choose feed silo based on the size of chicken house and feed consumption. Usually 1ton feed silo is suitable for 1,000-1,200 broilers. The larger of the capacity, the lower of the feeding frequency.
2: Does the feed silo suitable for installation outdoor?
Yes,of course.The feed silo is made by corrosion resistant material and designed for rainproof,so can be installed outside directly.
3:Does the feed silo can be connected with different type of feeding lines?
Yes, the silo bottom discharge port is designed with standard interface, allowed to connect with auger conveyor system or pan feeding lines.
