Feed Silo
Breeder chicken feed towers provide breeder chicken farms with safe and stable feed storage and supply solutions, and are important equipment for achieving automated feeding and standardized management.
Breeder Feed Silo

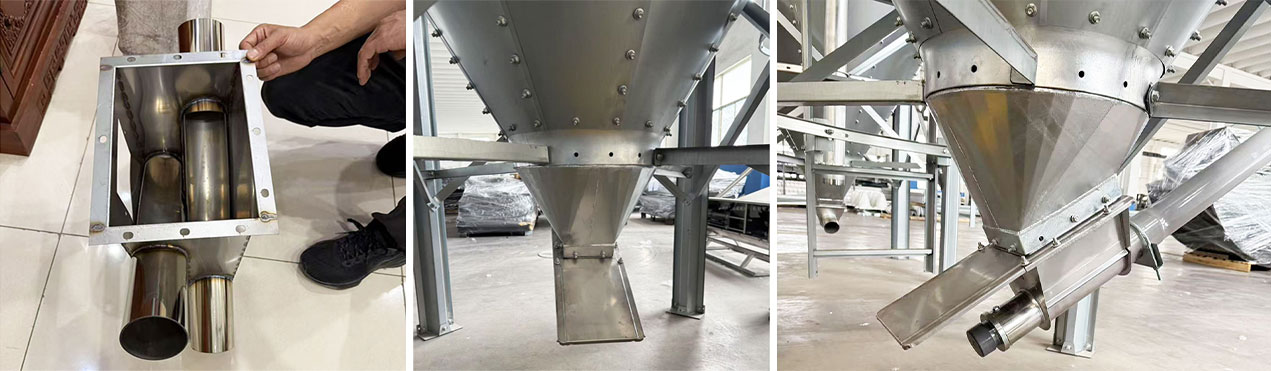

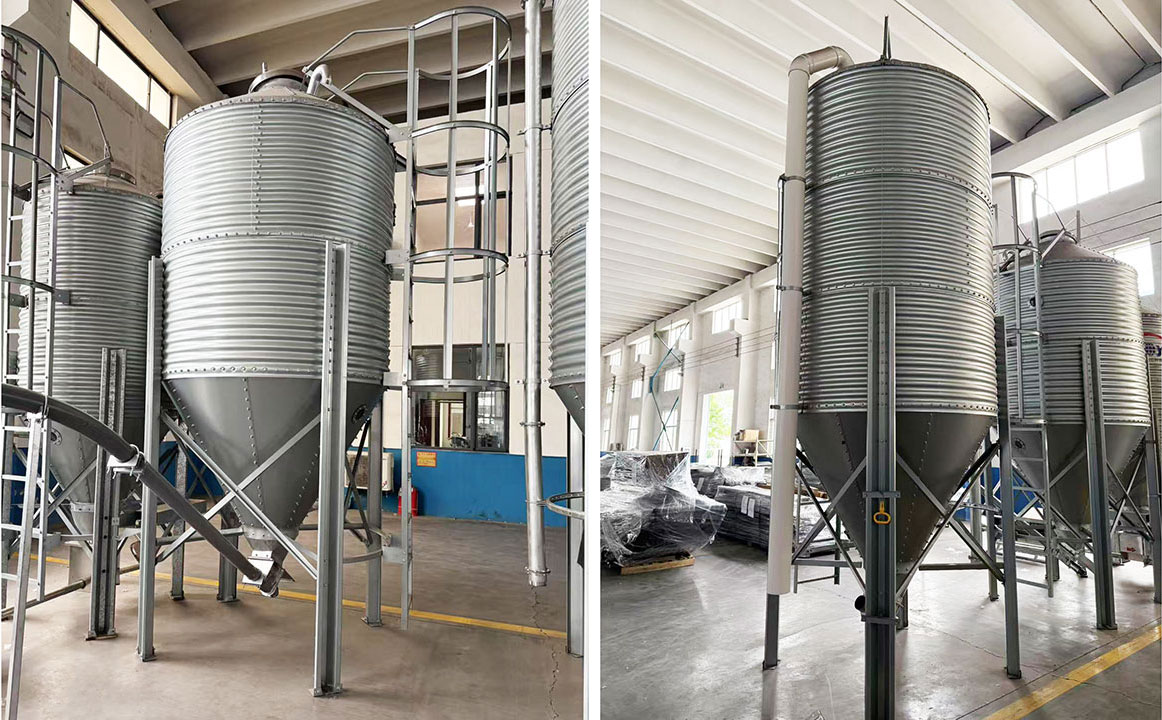

Feed silo is an important parts of feed storage and feeding system in chicken farms. It is outdoor storage device designed for bulk feed specifically for large-scale farms, mainly used for storing pelleted feed. Their material usually is high quality galvanized steel or fiberglass, which is corrosion-resistant and anti-aging, and can withstand long time exposure to sunlight, rain, and ammonia erosion. The top of the silo is sealed to prevent moisture, and bottom is conical for smooth discharge. It is usually work with feed line system (chain feed line or disc feed line) to achieve safe, continuous, and stable automatic feeding.
Technical Data
| Model | Diameter(mm) | Capacity(t) | Capacity(m³） | Silo Height(m) | Layers | Legs |
| HS-1800-1 | 1800 | 2.5 | 3.9 | 3418 | 1 | 4 |
| HS-1800-2 | 1800 | 3.9 | 6.0 | 4231 | 2 | 4 |
| HS-1800-3 | 1800 | 5.3 | 8.1 | 5042 | 3 | 4 |
| HS-1800-4 | 1800 | 6.6 | 10.2 | 5853 | 4 | 4 |
| HS-1800-5 | 1800 | 7.9 | 12.3 | 6664 | 5 | 4 |
| HS-1800-1(Plus) | 1800 | 2.5 | 3.9 | 3820 | 1 | 4 |
| HS-1800-2(Plus) | 1800 | 3.9 | 6.0 | 4633 | 2 | 4 |
| HS-1800-3(Plus) | 1800 | 5.3 | 8.1 | 5446 | 3 | 4 |
| HS-1800-4(Plus) | 1800 | 6.6 | 10.2 | 6256 | 4 | 4 |
| HS-2100-2 | 2100 | 5.7 | 5.2 | 4589 | 2 | 4 |
| HS-2100-3 | 2100 | 7.5 | 6.9 | 5401 | 3 | 4 |
| HS-2100-4 | 2100 | 9.4 | 8.6 | 6214 | 4 | 4 |
| HS-2100-5 | 2100 | 11.1 | 10.2 | 7028 | 5 | 4 |
| HS-2750-2 | 2750 | 10.3 | 15.8 | 5294 | 2 | 6 |
| HS-2750-3 | 2750 | 13.4 | 20.6 | 6109 | 3 | 6 |
| HS-2750-4 | 2750 | 16.5 | 25.4 | 6918 | 3 | 6 |
| HS-2750-5 | 2750 | 19.6 | 30.2 | 7731 | 4 | 6 |
| HS-2750-6 | 2750 | 22.7 | 21.0 | 8864 | 6 | 6 |
| HS-3200-2 | 3200 | 15.0 | 23.1 | 5809 | 2 | 6 |
| HS-3200-3 | 3200 | 19.3 | 29.7 | 6622 | 3 | 6 |
| HS-3200-4 | 3200 | 23.6 | 36.3 | 7435 | 4 | 6 |
| HS-3200-5 | 3200 | 27.9 | 42.9 | 8248 | 5 | 6 |
| HS-3200-6 | 3200 | 31.95 | 29.5 | 9058 | 6 | 6 |
| HS-3670-2 | 3670 | 19.5 | 18.0 | 6335 | 2 | 8 |
| HS-3670-3 | 3670 | 25.1 | 23.2 | 7148 | 3 | 8 |
| HS-3670-4 | 3670 | 30.6 | 28.3 | 7961 | 4 | 8 |
| HS-3670-5 | 3670 | 36.2 | 33.5 | 8774 | 5 | 8 |
Product Features and Advantages:
1. Reduced frequency of Procurement and Transportation
The feed silo with large storage capacity, so customer can store big amounts of feed to meet the long time needs of farms.
2. Truly Precision Feeding Automatic:
Hansong supplied feed silo equipped with automatuc feeding system, according to the needs of livestock,feeding times and amounts all can be set , to achieved precise feeding, and improved feeding efficiency.
3. Prevent Feed from Moisture and Contamination:
The feed silo's sealed design prevents feed from becoming damp, contaminated, and spoiled effectively, keeping feed freshness and nutritional content, ensuring the healthy and growth of livestock and poultry.
4. Centralized Management and Monitor:
The feed silo allowed for centralized feed management, dispensing and monitoring by workers, reducing waste and losses, and improving efficiency.
5. Improving Safety:
As a crucial equipment in farms, the feed silo with large storage capacity, high automation, stable feed quality, convenient management, and stable safety features.
Application

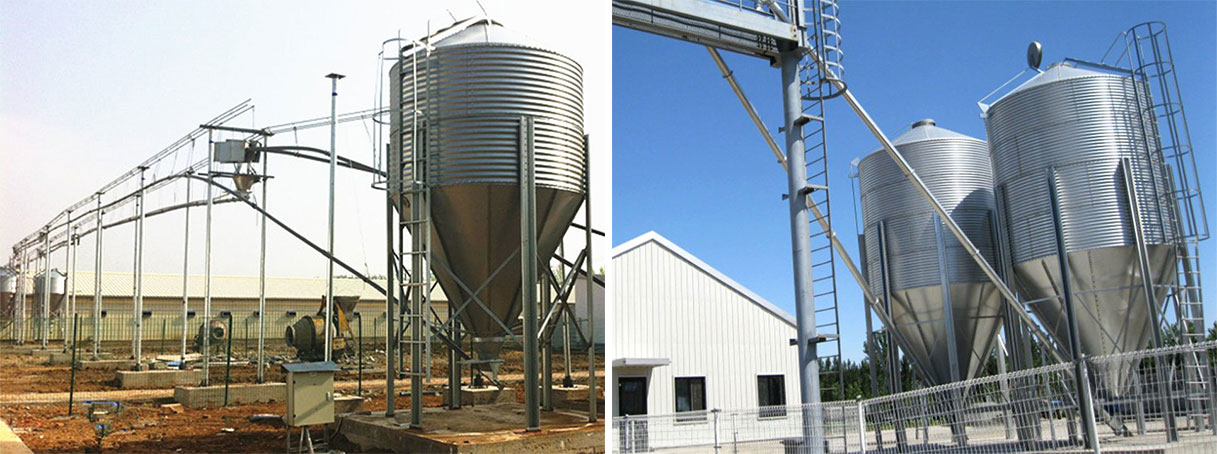

Hansong Brand feed silo is widely used in Breeder Farms,Breeder Chicken Laying Houses and Automation Upgrades and Renovations of Breeder Chicken Farms
FAQ:
1: How to choose the capacity of feed silo?
Normally feed silo capacity is selected according to the farm scales, daily feed consumption, and replenishment frequency.
Common configuration can meet 3–7 days' needs, we can provide selection advice for you based on farm scale.
2: Does the feed silo and feeding lines supplied together or need to purchase separately?
It’s all ok.
For new projects, we suggest that use complete feed silo + feeding line for high compatibility and more stable operation.
If renovation of existing farms, feed silo or feeding lines can be replaced separately based on the existing equipment.
3: How to transporte the equipment?
Feed silo is transported in separate units, the tower body, support frame, and feed hopper packaged separately, suitable for container shipping. Feeding line system is packed in modular parts for easy loading, unloading, and transport.
4: Does the installation is complex? Do we need professional person ?
The feed silo is not complex.It has reasonable structural design, and installation process is also not difficult.
We can provide installation drawing ,technical specifications, if necessary, video or onsite installation guidance to ensure proper system operation also workable.
